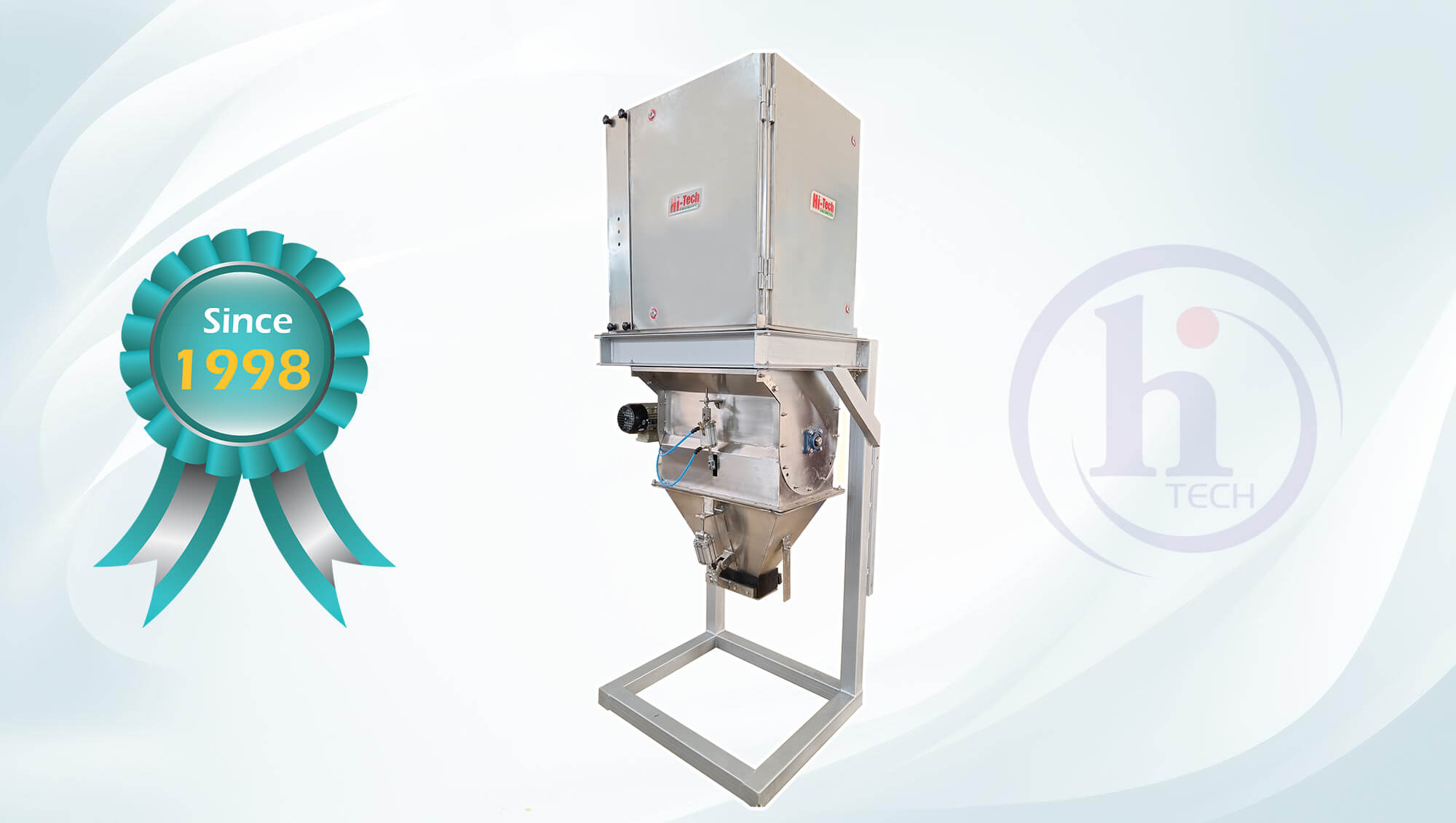

FRK RICE BLENDING & BAGGING MACHINE

logo images
  • Latest 3 loadcell Japanese technology for high accuracy weighment

  • Three independent shutter assembly (coarse, middle, fine) for high rated output.

  • Separate shutter assembly for FRK rice feeding arrangement for accurate blending proportion

  • High speed imported controller (PLC & Microprocessor based) with high sampling speed per second

  • Auto tare I tare zero function/error message and diagnostic function.

  • Latest blending technology with inner & outer opposite rotation ribbons for effective blending process in each cycle.

  • Optional : Screw Feeder / Vibro - Feeder / Belt Feeder

  • Adjustment free individual coarse. fine and super fine shutters hence no adjustment.

  • No frequent calibration & no mismatching with platform scale weight

  • Self-alignment load bucket with triangular concept

  • Compact design with minimum height required to install the machine.

  • Controlled rice flow design ,no need to adjust bin control gates frequently

  • Twin surge hopper for uniform free flow of rice

  • Fully S.S 304 construction with laser cut profiles for precisions.

  • Rated Output

    :

    240 to 300 Bags / Hour of 50 Kgs

  • Accuracy

    :

    +/- 20 Grams

  • PLC Make

    :

    Delta

  • Loadcell Make

    :

    Sensotronics

  • Pneumatics

    :

    Janatics

  • Bearings

    :

    SKF

  • Motor make

    :

    Crompton (0.5HP) 1440 RPM 3 Phase Induction

  • Gear Box

    :

    Elecon (Worm Reducer)

  • Power Supply

    :

    3 Phase

  • Air Consumption

    :

    5-10 Litres per Weighment @ 5 - 6 Kg cm Sqr

Contact us to provide correct Weighing and Bagging solution. We assure you that you will never regret.
